Yaesu FT-65E VHF/UHF Dual Band 5W FM
Regular price
€119,00 EUR
incl. VAT
Find out shipping times and costs at checkout!

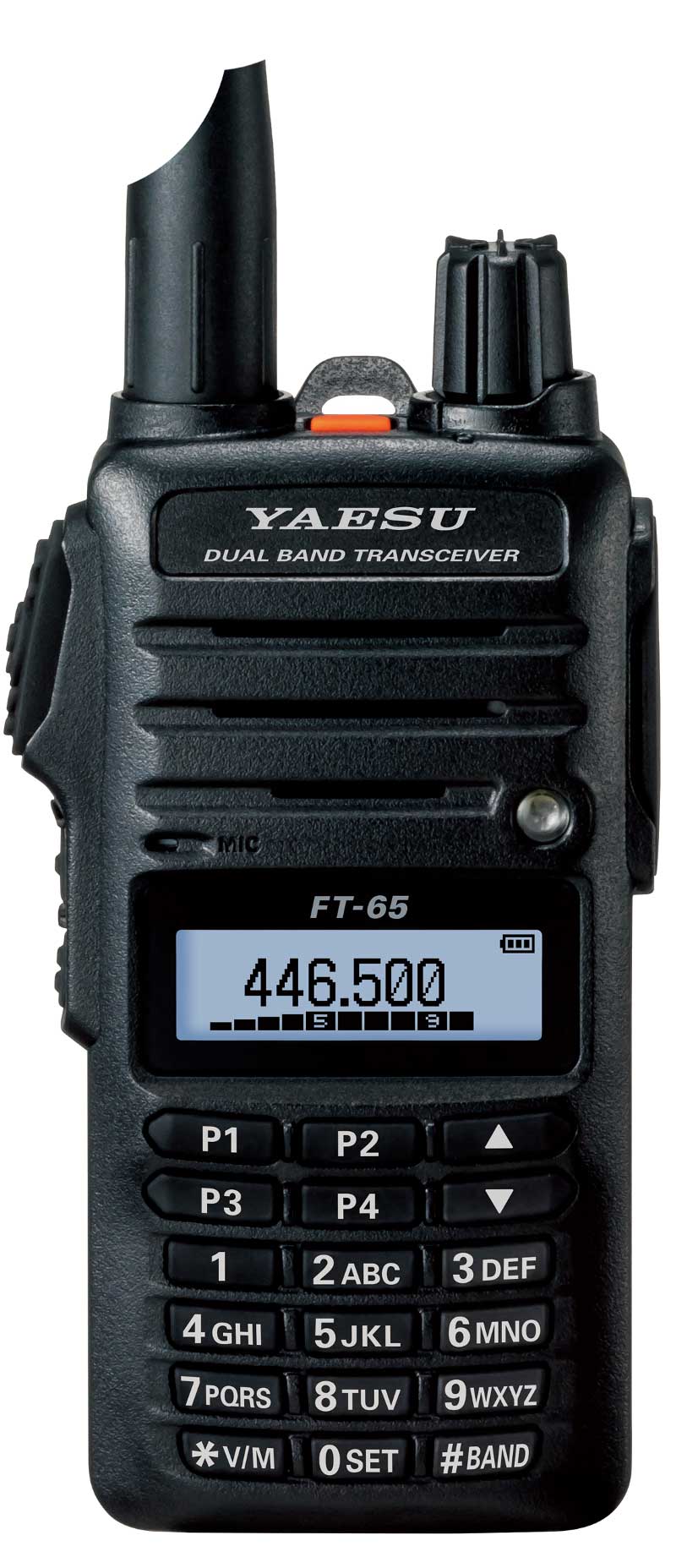

The FT-65E is a compact rugged dual band (2M/70cms) FM transceivers constructed to meet commerical grade specifications. It is packed with high performance and valuable features demanded by radio operators around the world.
- Compact Design measuring W 52.5 x H 104.5 x D 31mm
- 5 Watts of reliable RF power within a compact body
- Three selectable power settings from 0.5W LOW ; 1.0W MIDDLE to 5.0W HIGH
- One Watt Audio power output for clear audio from 36mm Front facing speaker
- Rugged Construciton Meets IP54 and MIL-810-C,D and E
- QRK (Quick Recall Key) Four programmable Keys for Quick access to favourite funtions.
- Over 9 Hours operating time from supplied 1,950mAh (SBR-25Li)Li-Ion Battery Pack (6:6:48)
- Optional 2,500mAh High Capacity Battery available (SBR-26Li) provides over 11.5Hrs Extended Operating Time (6:6:48)
- 3.5Hr Rapid Charge (SBH-22) supplied with radio
- Large White LED Flashlight with Alarm and Quick Home Channels access for Emergency signalling
- Versatile Scanning modes ( Progrfammed VFO Scan, Memory Scan, Priority Scan)
- VOX operation with optional VOX earpiedce microphone (SSM-512B)
- PC Programmable with Optional PC Programmng Cable SCU-35)
- Transceive to Transceiver cloning with Cloning Cable (SCU-36)
- FM Broadcast Receiver
- ARTS ( Automatic Range Transponder System) for alertng users when out of range
- DTMF Signalling
- CTCSS/ DSC Signalling
- BCLO (Busy Channel Lockout ) prevent transmission when channel is busy
- Battery Save function
- Automatic Power Off (APO) feature
- TX Time Out Timer
| SPECIFICATIONS | FT-65E |
| GENERAL | |
| Frequency Ranges | RX |
| 136 - 174 MHz | |
| 400 -480 MHz | |
| FM BROADCAST | |
| 65 - 108 MHz | |
| TX | |
| 144 - 146MHz [EU Version] | |
| 430 - 440MHz [EU Version] | |
| Channel Steps | 5/10/12.5/15/20/25/50/100kHz |
| Frequency Stability | ±5ppm @ -10ºC to +60ºC |
| Repeater Shift | ±600kHz (144MHz), ±1.6/7.6MHz (430MHz) |
| Emission Type | F2D, F3E |
| Antenna Impedance | 50Ω |
| Supply Voltage | |
| Nominal | 7.4V DC, Negative Ground |
| Current Consumption | 205mA (Receive) 200mW Output |
| (approx. @ 7.2V) | 100mA (Standby, Saver Off) |
| 47mA (430MHz, Standby, Saver Off) | |
| 18mA (Standby, Saver On) | |
| 4mA (Auto Power Off) | |
| 1.5A (5W TX, 144MHz) | |
| 1.7A (5W TX, 430MHz) | |
| Operating Temperature | -20ºC to +60ºC |
| Case Size (W x H x D, mm) | 52.5 x 104.5 x 31.0 mm |
| Weight (approx., g) | 260g with SBR-25Li and antenna |
| TRANSMITTER | |
| RF Power Output (approx.) | 5.0W (High), 2.5W (Middle), 0.5W (Low). |
| Modulation Type | Variable Reactance (F2D, F3E) |
| Maximum Deviation | ±5.0kHz (F2D, F3E) |
| Spurious Emission | at least 60dB down (Hi & Middle power) |
| at least 40dB down (Low power) | |
| Microphone Impedance | 2kΩ |
| RECEIVER | |
| Circuit Type | Direct Conversion |
| Sensitivity | 0.2µV for 12dB SINAD (140 - 150MHz, NFM) |
| 0.2µV for 12dB SINAD (420 - 470MHz, NFM) | |
| Selectivity | 12kHz/35kHz (-6dB/-60dB) |
| AF Output | MAX POWER 1W @ 16Ω, 0.8W @16Ω for 10% THD |
Package:
- Li-Ion Battery SBR-25Li 7.4VDC @1950mAh
- Rapid Charger SBH-22
- AC Adaptor SAD-20C/U
- Belt Clip SHB-18
- Antenna
