Alinco DM-430E 30A Power supply
Wie lange dauert der Versand?
Die Lieferzeiten hängen vom Zielland und der Postleitzahl ab. Sie werden beim Checkout angezeigt und gelten nur für Produkte, die aktuell auf Lager sind.
Für Produkte mit dem Hinweis Vorbestellung kann die Bearbeitung 5 bis 15 Tage dauern. Bei Verzögerungen wirst du von unserem Kundenservice rechtzeitig informiert.
Wie ist die Garantie geregelt?
Alle Produkte haben eine gesetzliche Gewährleistung von 24 Monaten. Manche Marken bieten verlängerte Garantien.
Hier klicken für mehr Informationen.
Kann ich einen Artikel zurückgeben?
Du hast das Recht, ein Produkt innerhalb von 14 Tagen nach Erhalt zurückzugeben, gemäß unserer Rückgaberichtlinie. Die Rücksendekosten trägt der Kunde. Der Artikel muss unbeschädigt und in der Originalverpackung zurückgesendet werden. Bitte kontaktiere uns vor der Rücksendung.
Sei un'azienda? Compila il modulo per la fatturazione
Clicca sul pulsante qui sotto per inserire i tuoi dati aziendali:
Vai al moduloThese supplies have 5-15VDC variable output and deliver up to 30A peak power. They are designed for the electronics hobbyist and 2-Way radio communication use. They are ideal for Amateur Radio transceivers that require a 13.8V DC external supply.

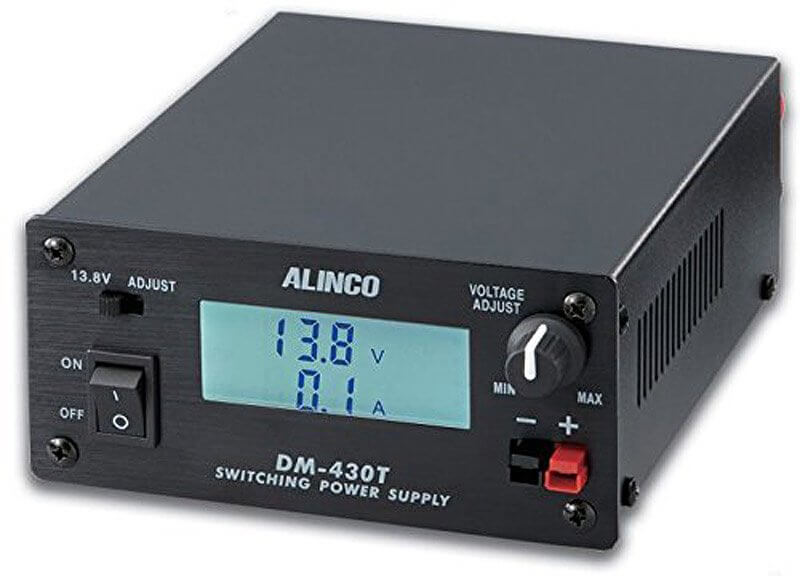

Features include a large, illuminated, digital Volt/Amp meter, rear panel binding posts (30A peak), added front panel Anderson PowerPole® terminals (30A/peak) providing versatility and quick connection.
Voltage adjustment is 5-15 volts, or switch to fixed-voltage at 13.8V. Power supply ripple is less than 80mVp-p and protection is provided for short-circuit, over temperature, and current limiting!
Specification :
- Power Supply Type: switch mode
- Peak Output: 30A at 13.8 Vdc
- Voltage Adjustment Control: Front panel
- Voltage Adjustment Range: 5.0-15.0 Vdc
- Metering Type: Dual meters
- High Current Terminal Location: Front/Rear panel
- Cooling Type: Fan
- Width: 4.921 in. Height: 2.362 in. Depth: 6.299 in.
- Weight: 3.53 lbs.
- Nominal 230 V AC input.
