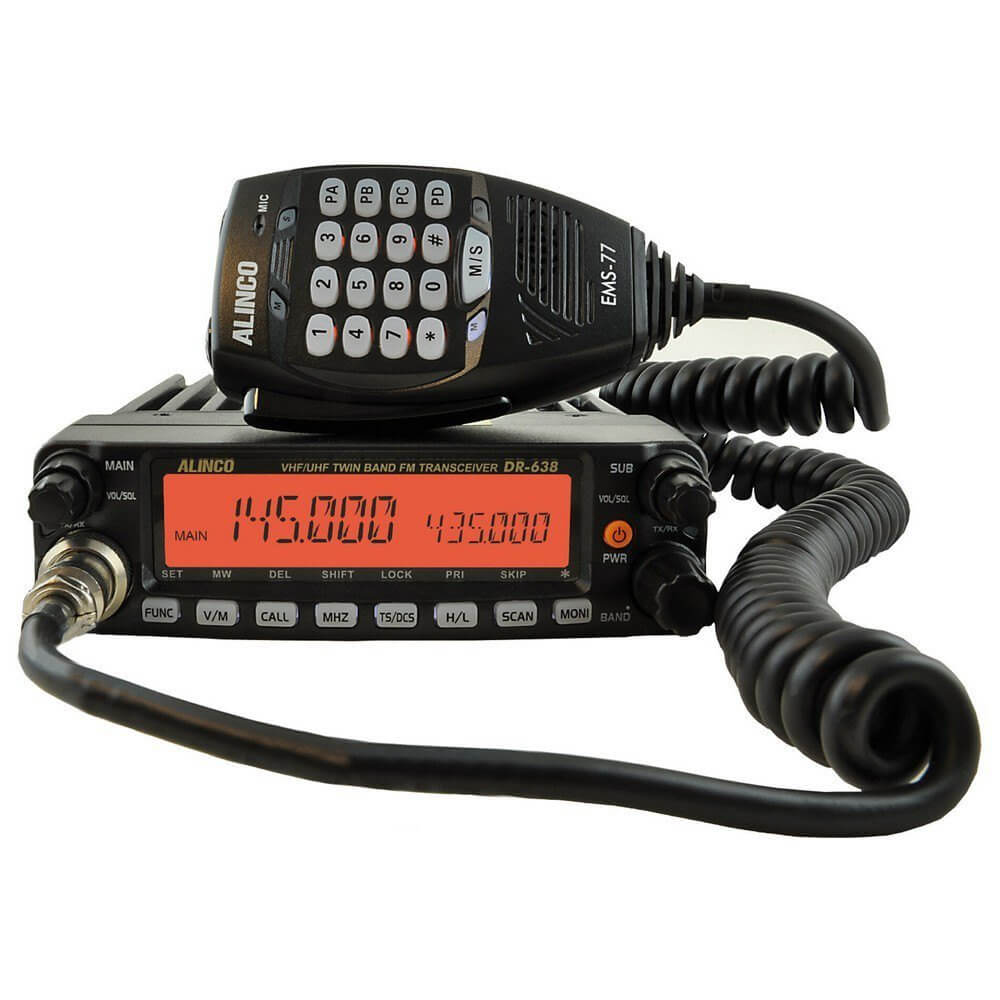

Alinco DR-638HE VHF/UHF Transceiver
Normaler Preis
€399,00 EUR
inkl. MwSt.
Sehen Sie beim Check-out über Versandzeiten und -kosten!
Mobiler/Basis-VHF+UHF-Vollduplex-Transceiver
Features of DR638HE
|
Standard Accessories:
- Microphone (EMS-77)
- DC cable
- Bracket & Hardware pack
- Instruction Manual
Optional Accessories
- EDS-28 Front-control unit separation kit (front-panel bracket, 5m cable and a hardware pack)
- PC connection cable ERW-12 & EDS-29 Cable-cloning cable
Specifications
| Genaral | |
| Frequency range: | TX/RX VHF 144.000-145.9975 MHz UHF 430.000-439.9975 MHz (FCC/IC amateur models not available : Land mobile version is FCC part 90 certified) |
|---|---|
| Modulation: | 16K0F3E(FM)/8K50F3E(Narrow FM)/F1E(Optional digital voice)/F2D(1200bps)/A3E(RX only/AM) NOTE: 9600bps packet is not usable |
| Channel steps: | 5, 6.25, 8.33, 10, 12.5, 15, 20, 25, 30, 50, 100KHz |
| Memory channel: | Free-programmable 758 ch |
| Antenna impedance: | 50ohm unbalanced |
| Frequency stability: | +/- 2.5ppm |
| Power Supply Requirement: | 13.8V DC +/- 15% Negative ground |
| Current Drain: | Approx. 12A TX high / 0.6A RX max. / 0.4A RX squelched |
| Operating temperature: | -20digC to +60digC |
| Dimensions (w/o projection): | 139x40x212 mm or 5.47x1.58x8.35 inches approx. |
| Weight: | 1.14kg or 40.21 oz approx. |
| Transmitter | |
| Power Output: | High 50W VHF-40W UHF / Mid25W / Low 10W approx. |
| Modulation system: | Variable Reactance Frequency Modulation |
| Spurious emission: | Less than -60dB |
| Maximum frequency deviation: | +/- 5 KHz (FM) / +/- 2.5 KHz (NFM) |
| Receiver | |
| Receive system: | Double-conversion superheterodyne |
| Sensitivity (-12dB SINAD): | VHF 0.25uV / UHF 0.35uV or better |
| Squelch: | Carrier/CTCSS/DCS/5Tone/2Tone/DTMF |
| Audio output power: | 2.0 W (8 ohm, 10% distortion) |
