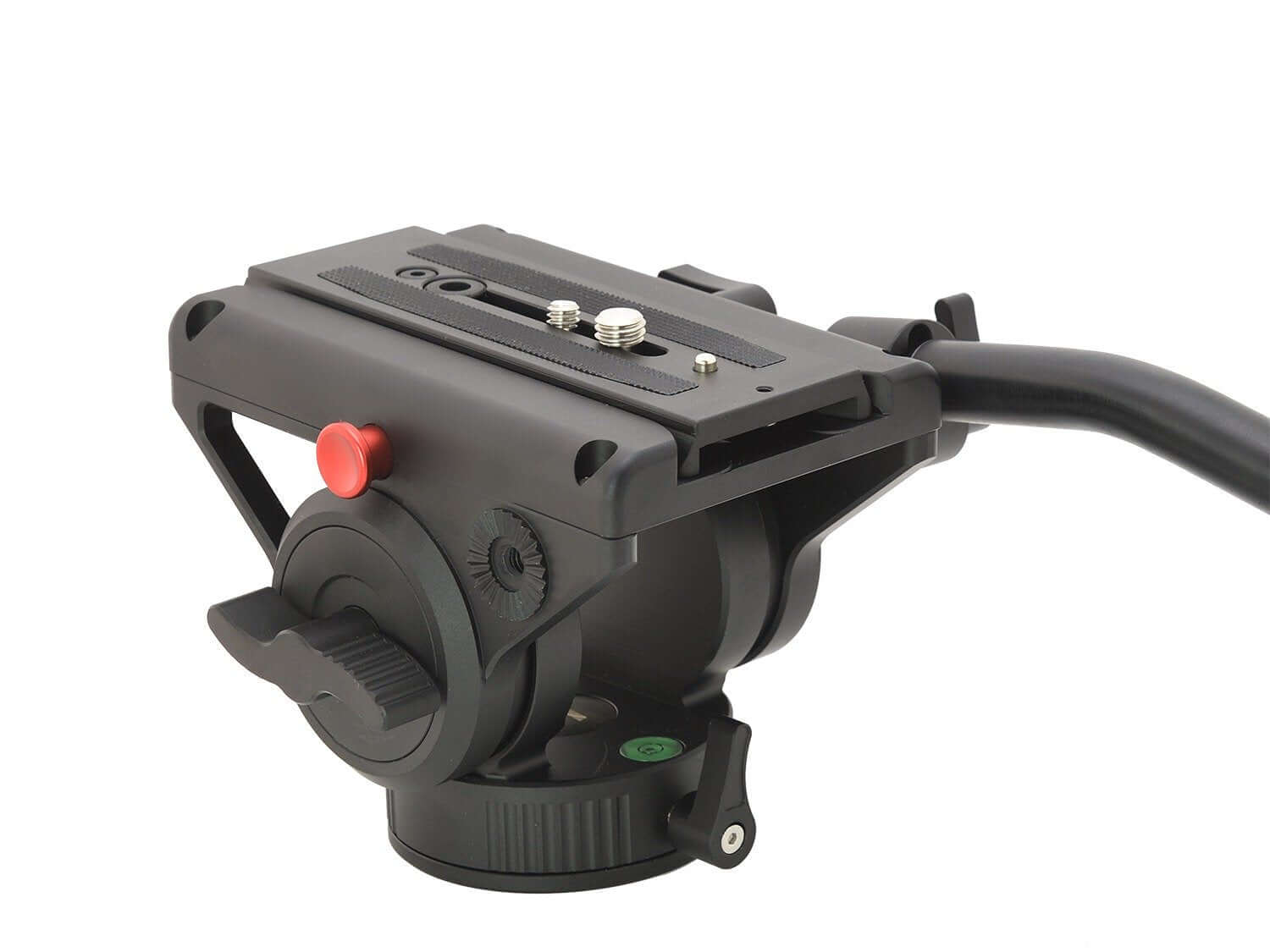

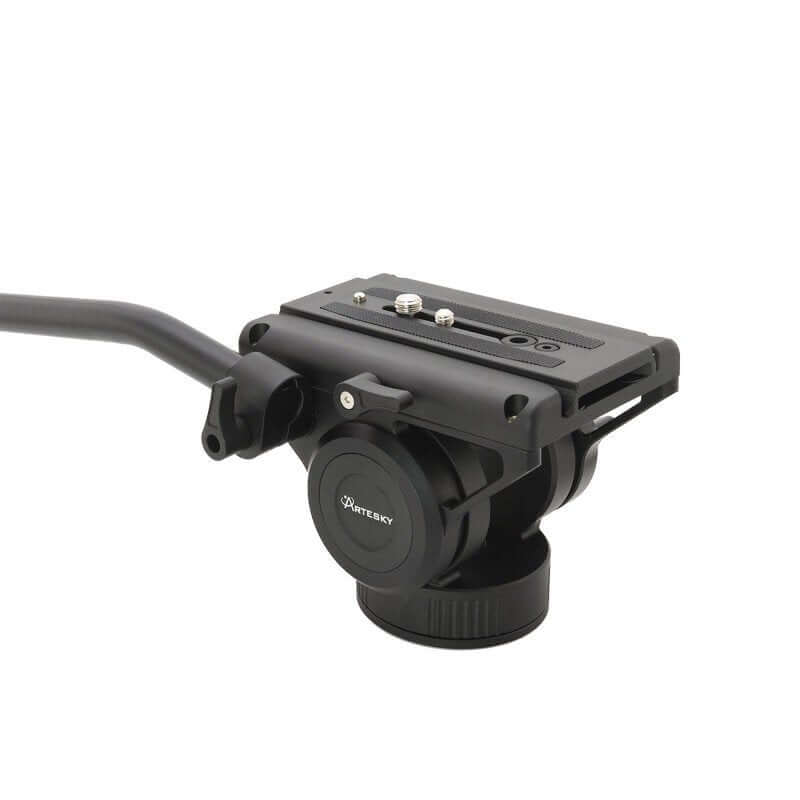

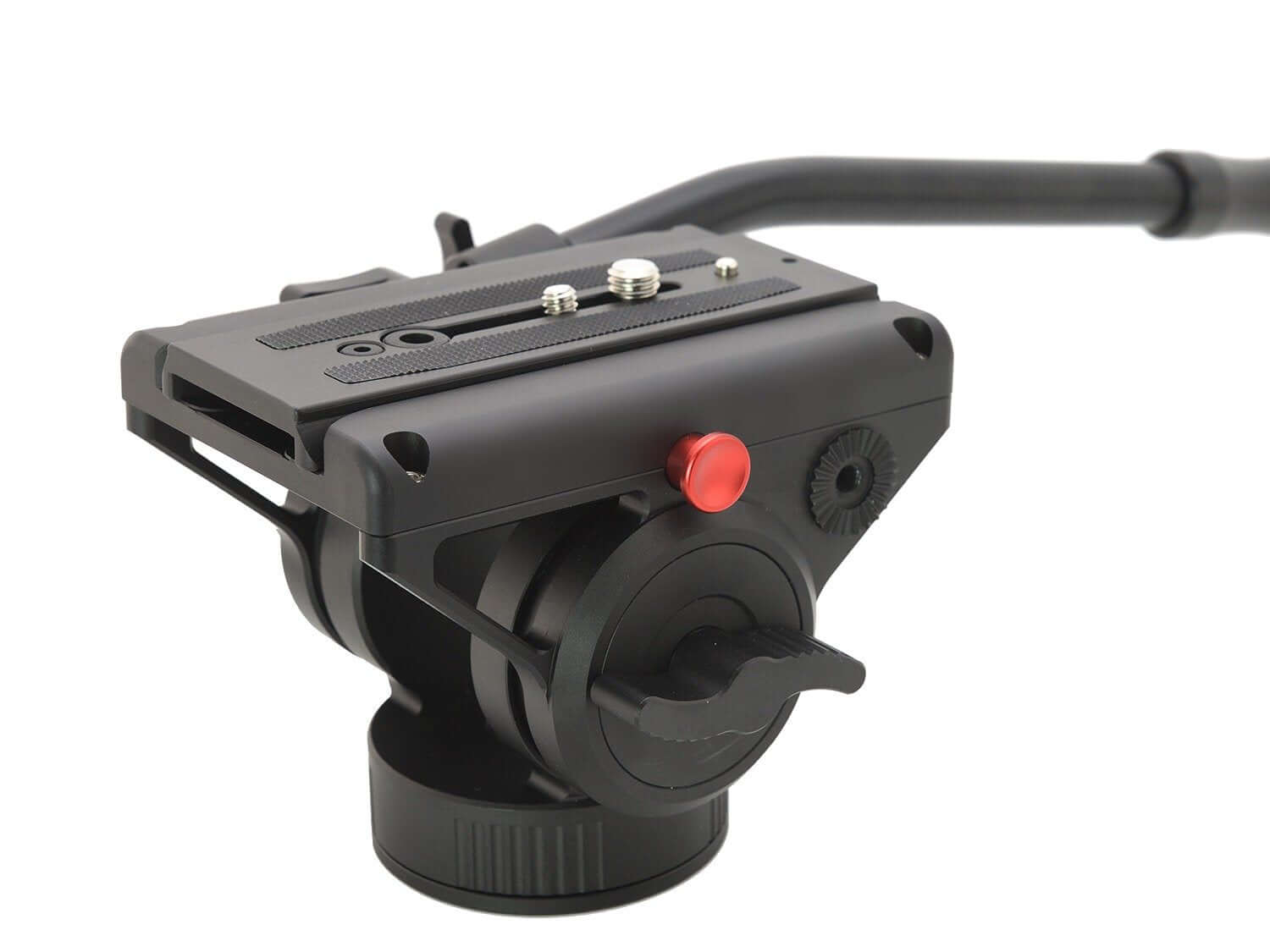

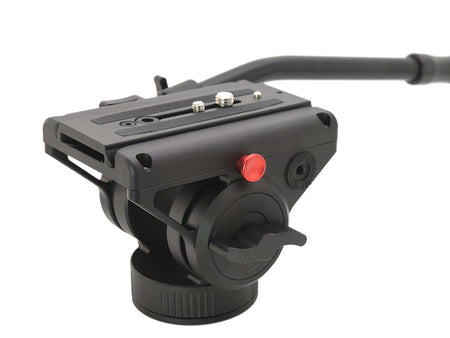

Artesky Photographic Fluid Head

Fluid tilting head fits all common photographic tripods for photography and observation - with quick release plate. It supports tools up to about 10-11 kg, such as large binoculars, telescopes or cameras with large telephoto lenses.
A side adjustment wheel and locking screw on the base can be used to adjust the resistance (friction) in both axes.
The handle can be mounted on the right or left side of the tilting head depending on your comfort.

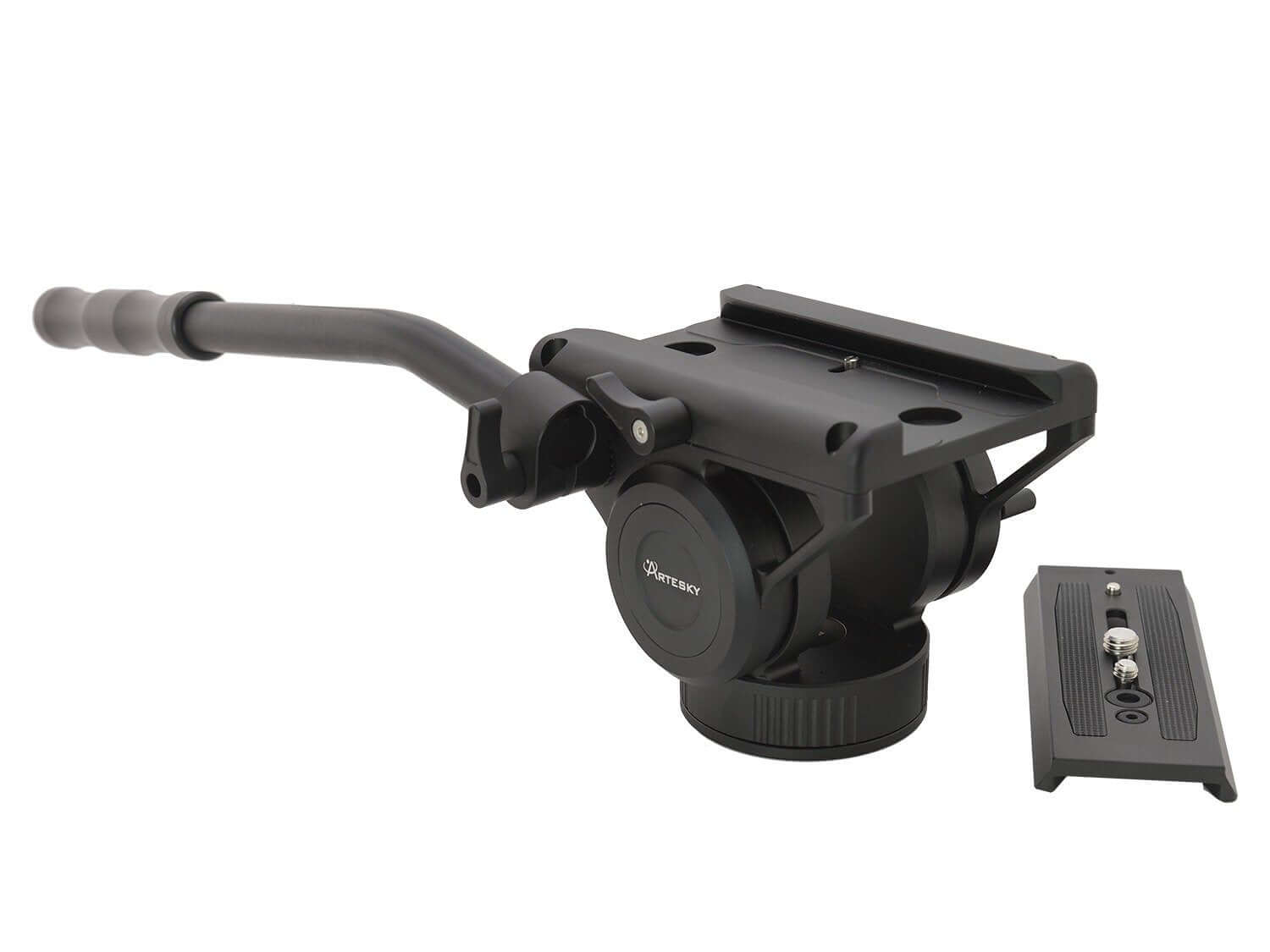

A large quick release plate with a length of 125 mm ensures good stability of the instrument on the tilting head - fixing by 1/4" or 3/8" tripod thread.
Spirit level for accurate setting at the base.
Easy adaptation to photo tripods via a 3/8" female thread on the 67mm diameter base

Characteristics
The fluid tilting head is superior to conventional tilting or ball heads.
It is particularly suitable for heavy instruments, such as binoculars with an aperture of up to 100 mm, large telephoto lenses, telescopes and spotting scopes!
Thanks to the smooth damping, there are no jerky movements; even at higher magnifications, you can adjust sensitively and thus always bring the subject to the center of the eyepiece or camera.
Another special feature is the vertical adjustment or height adjustment.
The higher the telescope is pointed, the greater the resistance becomes. This prevents tilt from causing imbalance, especially when observing the stars.
Even heavy instruments can therefore be used to observe objects in the sky.
The rotary knobs allow you to adjust the resistance on both axes according to the weight of the instrument.
The practical adjustable handle with a length of 28 cm can be fixed on the right or left side. The orientation of the handle can also be adjusted, so pan to the zenith is possible.
