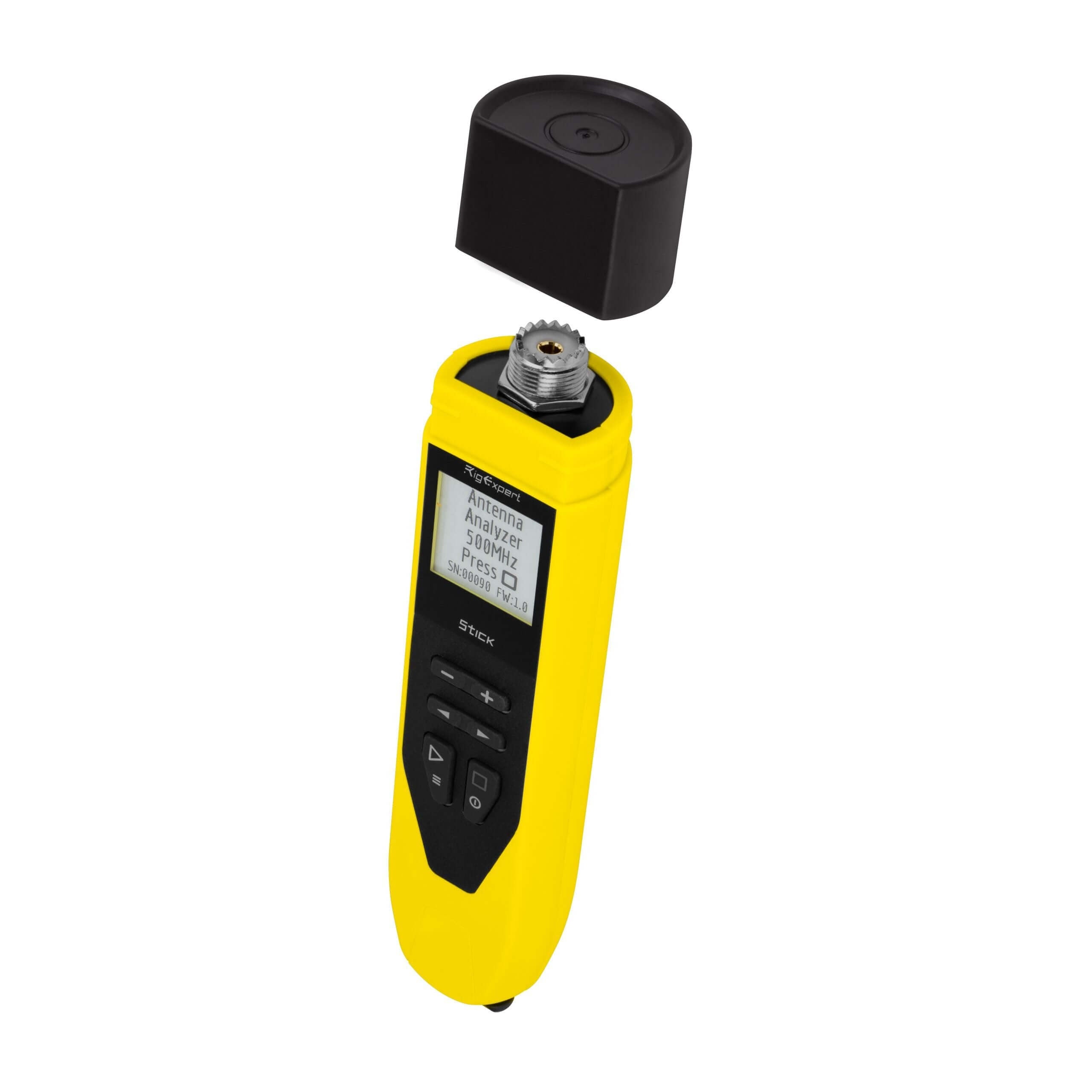

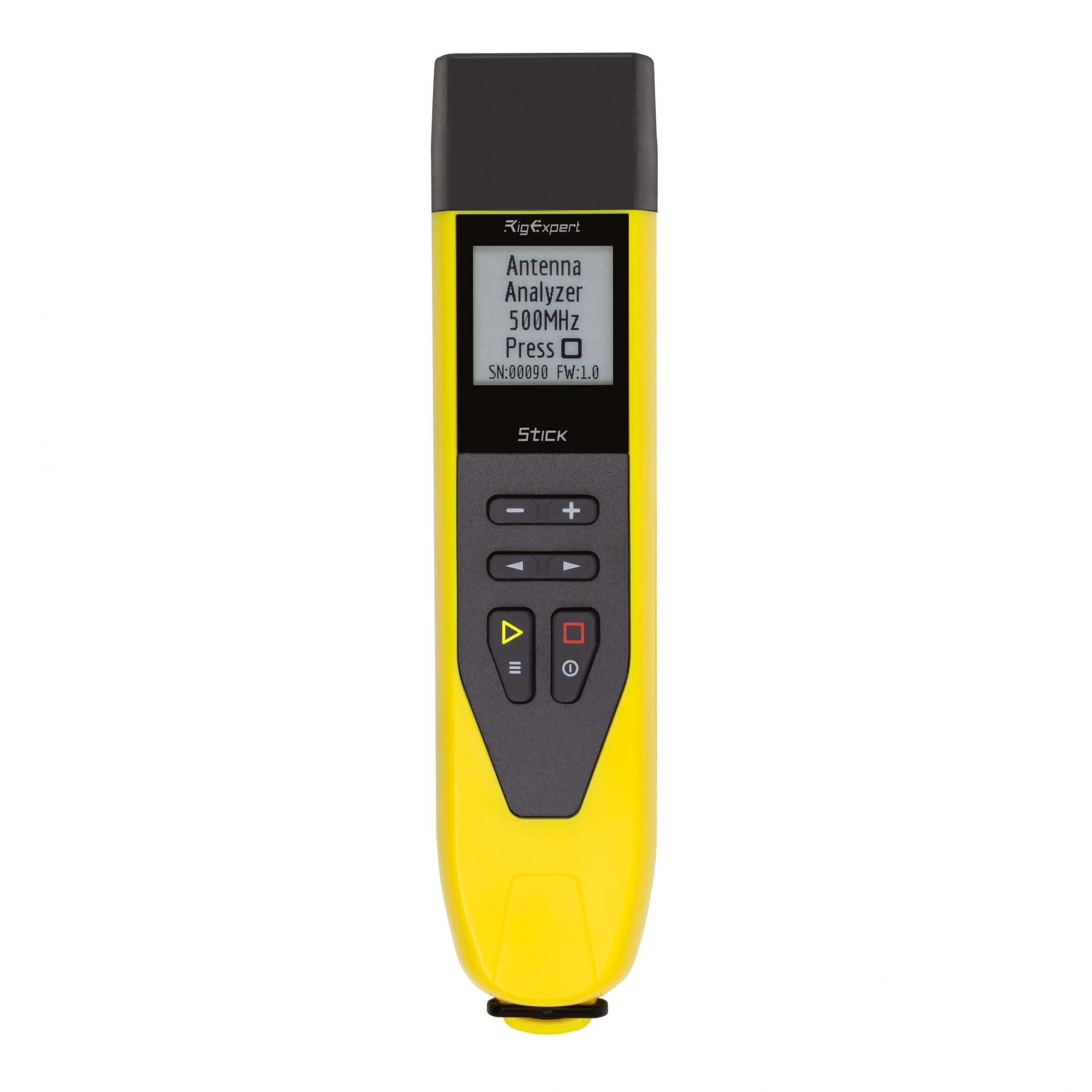

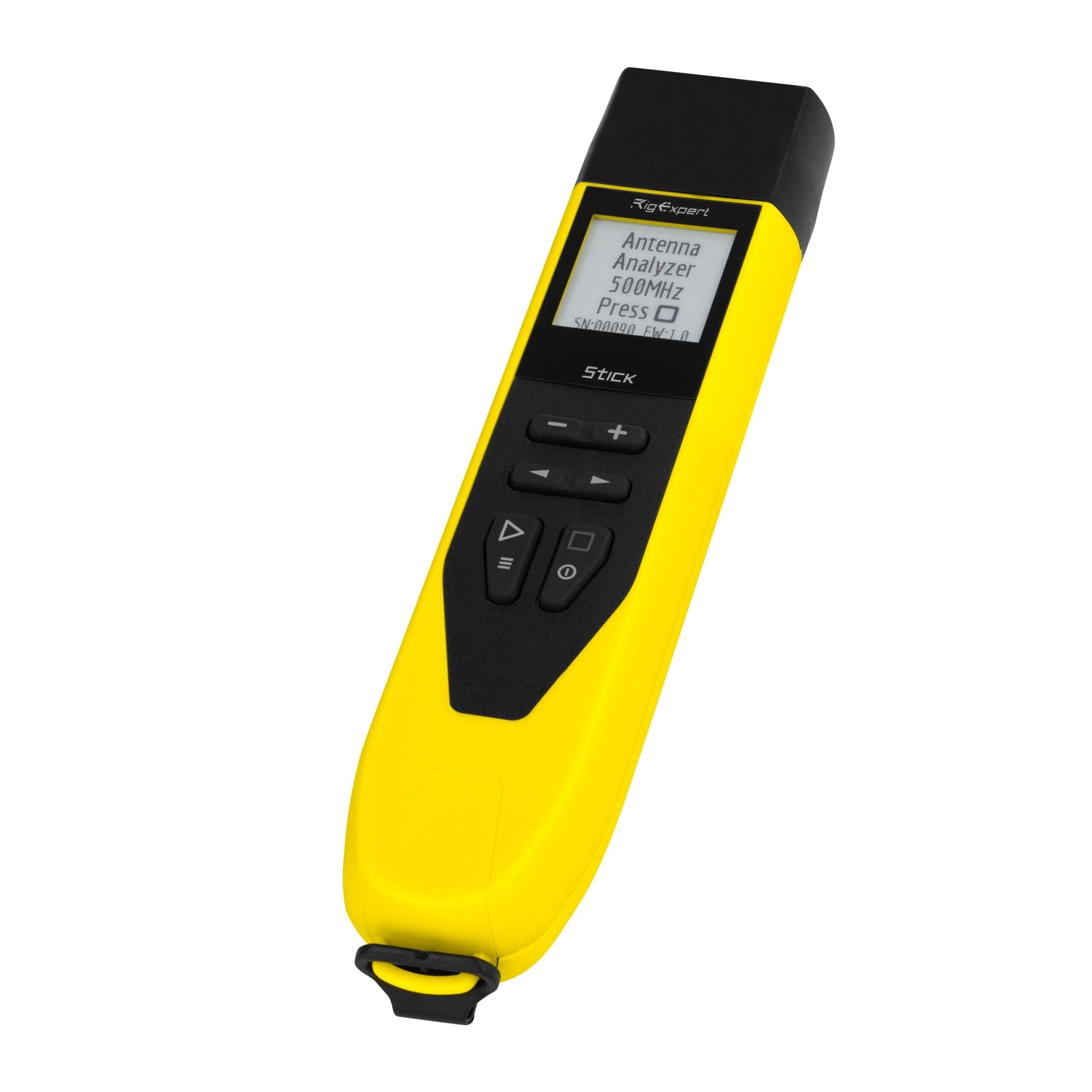

RigExpert Stick 500

The UHF analyzer is designed for measuring the standing wave ratio (SWR) and return loss, amplitude, and phase angle, as well as the value of active (R) and reactive (X) resistances, considering the sign, inductance (L) and capacitance (C) in parallel and series modes of antennas, cables, lines, filters and other systems in the range of 0,1 MHz to 500 MHz.

Like all Stick analyzers, it is capable of 16 hours of continuous measurements without battery recharging.

Smart, fast, handy, and even more powerful. At any time, place, and in any weather.

Frequency range: from 0.1 to 500 MHz
Frequency input step: 1 kHz
Measurements for 25, 50, 75, 100, 150, 200, 300, 450, and 600 Ohm systems
SWR measurement range: from 1 to 100 in digital mode, from 1 to 10 in graph modes
Range R and X: 0… 10000, -10000… 10000

Operating modes:
SWR, Return loss, R, X, Z, L, C, magnitude, and phase angle at one frequency.
SWR chart, 100 points.
Multé mode – for quick testing of a multi-band antenna.

HF output:
Connector type: UHF (SO-239).
Output signal shape: square, from 0.1 to 500 MHz.
Output power: -10 dBm (at a load of 50 Ohms).

Power:

One lithium-ion battery 3.7 V type 18650
When the analyzer is connected to a PC or DC adapter with a USB connector, it receives power from these sources

Interface:

High contrast E Ink display with a size of 200 × 200
2 × 3 keys on the waterproof keyboard
English menu and help screens
USB connection to a personal computer

Bluetooth: v.4.2 BLE Single Mode, Class B
Dimensions: 185 mm x 40 mm x 33 mm (7.3 inches x 1.6 inches x 1.3 inches)
Operating temperature: -15° … 40 ° C (5 … 104 ° F)
Weight: 185 g (6.5 ounces) with battery
Warranty: 2 years

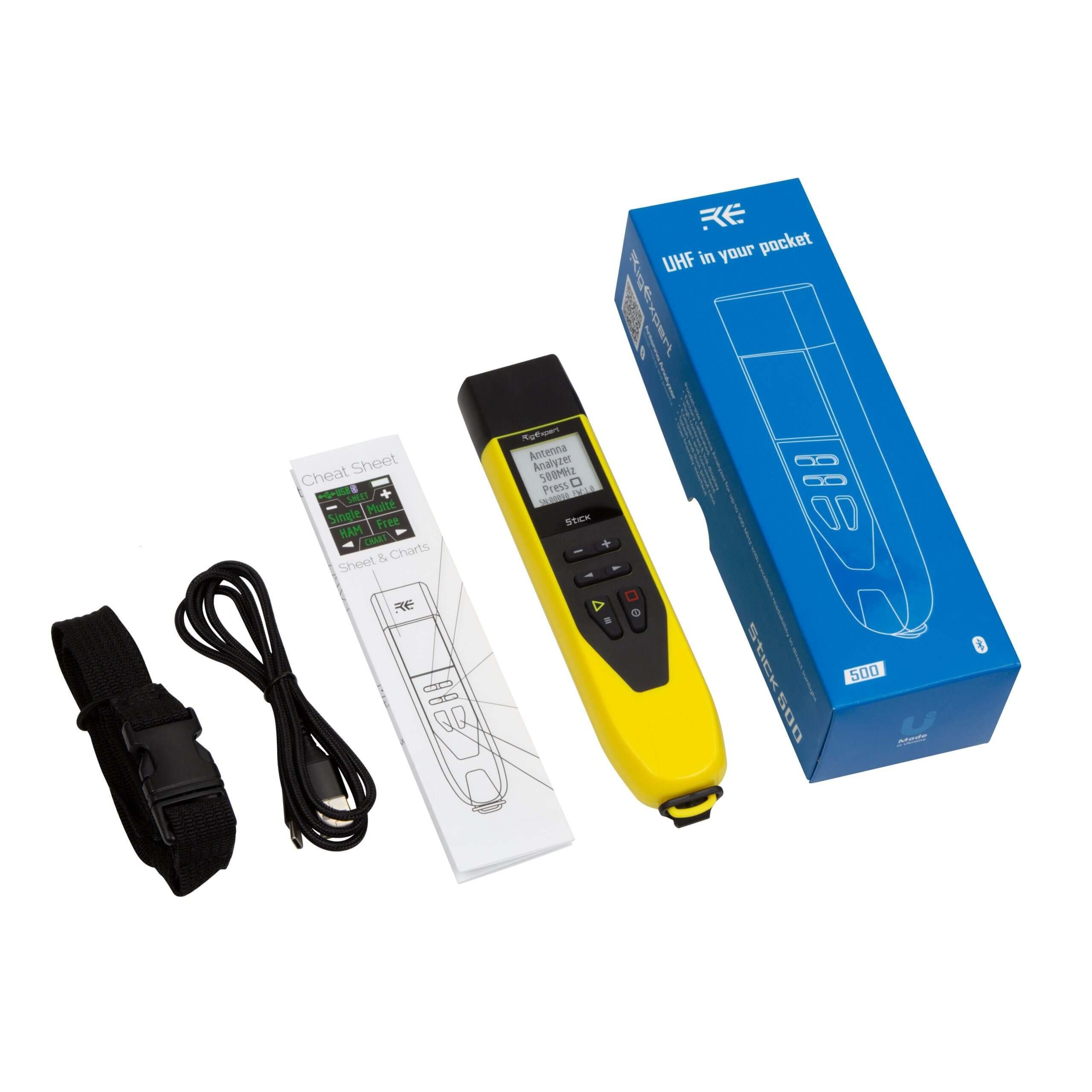

In the box:

• RigExpert Stick 500 antenna analyzer (with a Li-ion battery type 18650)
• Quick start guide
• Lanyard
• USB cable

RigExpert Stick is made in Ukraine.

* All specifications are subject to change without notice or obligation.
