RigExpert Stick Pro

Disponible para reserva
SKU: RESTICKPRO EAN: 4820185420280
Precio regular €439,00 EUR IVA incluido
¡Descubra los tiempos y costos de envío al finalizar la compra!

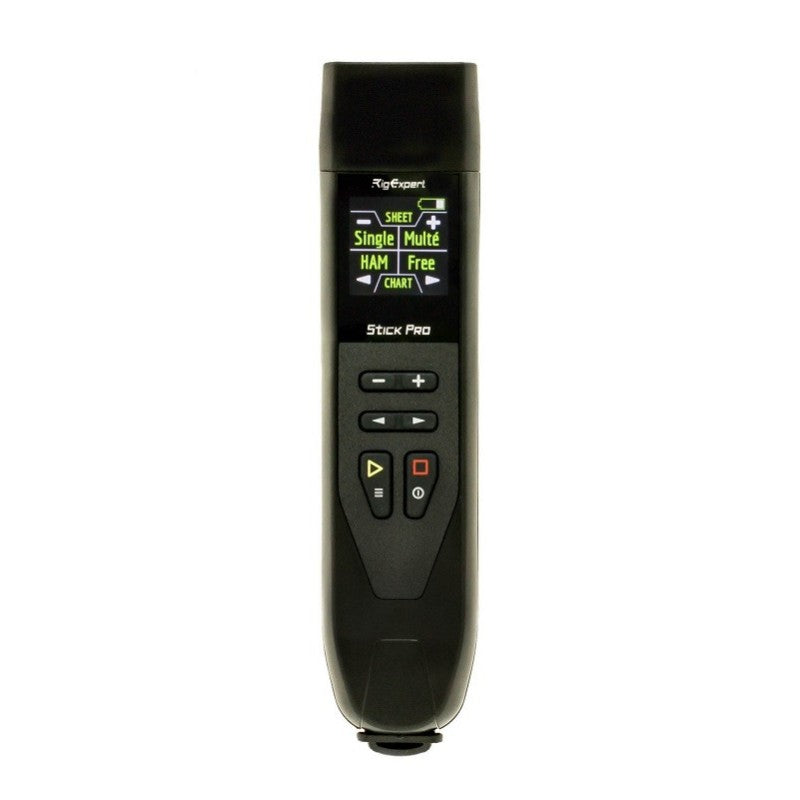

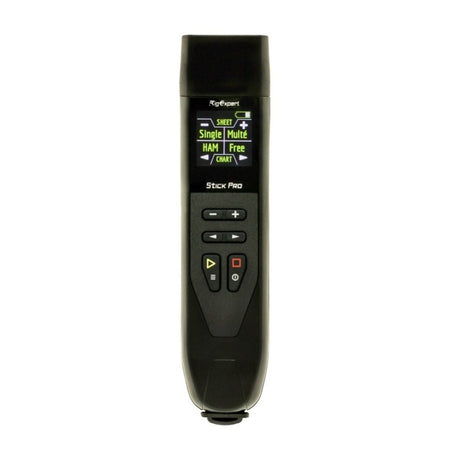

Stick Pro es un analizador vectorial de antenas y cables. El analizador le permite medir varios parámetros de antenas, cables, líneas, filtros y mucho más en el rango de frecuencia de 100 kHz a 600 MHz.

Stick Pro is an antenna and cable vector analyzer. The analyzer allows you to measure various parameters of antennas, cables, lines, filters and many others in the frequency range from 100 kHz to 600 MHz.

The Stick Pro analyzer has compact size and lightweight, which is great for using the analyzer both in the home and in the field.


Frequency range: 0.1 ~ 600 MHz

Frequency input step: 1 kHz

Measurements for 12.5, 25, 28, 37, 50, 75, 100, 150, 200, 300, 450 and 600Ω systems

SWR measurement range: from 1 to 100 in digital mode, from 1 to 10 in graph modes

Range R and X: 0… 2000, -2000… 2000

Operating modesSWR, Return loss, R, X, Z, L, C, magnitude and phase angle at one frequency. SWR chart, 100 points. Multé mode – for quick testing of a multi-band antenna.

HF outputConnector type: N-type. Output signal shape: square, from 0.1 to 600 MHz. Output power: -10 dBm (at a load of 50 Ohms).

PowerOne lithium-ion battery 3.7 V type 18650. When the analyzer is connected to a PC or DC adapter with a USB connector, it receives power from these sources

Interface: 200 × 200 TFT display. 2 × 3 keys on the waterproof keyboard. English menu and help screens. USB connection to a personal computer

Bluetooth: v.4.2 BLE Single Mode, Class B. Data transmission via Bluetooth connection is only possible in conjunction with gadgets running iOS and Android OS.

Dimensions: 185 mm x 40 mm x 33 mm (7.3 inches x 1.6 inches x 1.3 inches)

Operating temperature: 0 … 40 ° C (32 … 104 ° F)

Weight: 185 g (6.5 ounces) with battery

Warranty: 2 years


In the box:

  • RigExpert Stick Pro antenna analyzer (with a Li-ion battery type 18650)
  • quick start guide
  • neck strap
  • USB cable
  • N-to-UHF adapter



RigExpert Stick Pro is made in Ukraine.

* All specifications are subject to change without notice or obligation.
