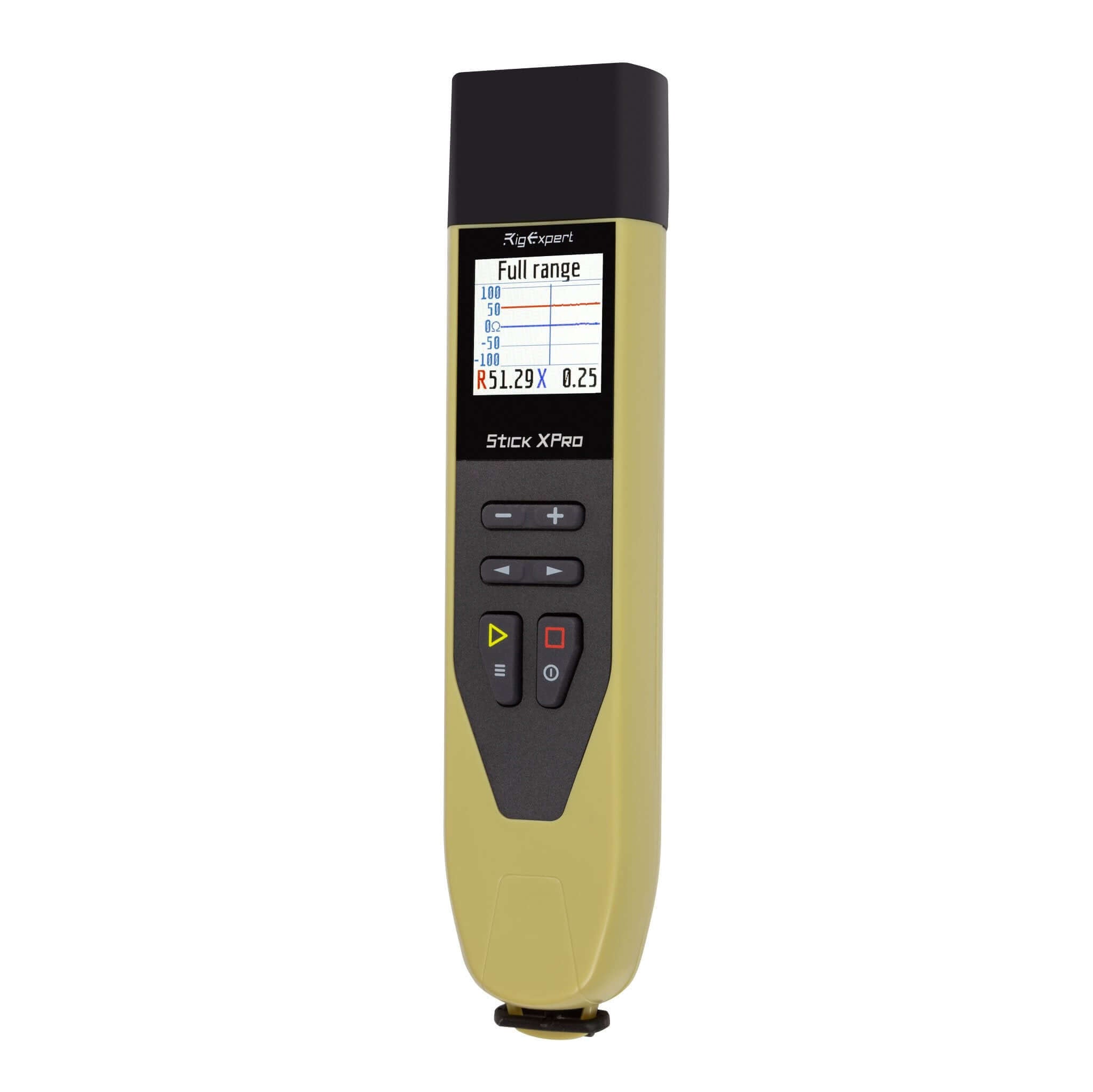

RigExpert Stick XPro 0.1MHz to 1000MHz Antenna Analyzer
Quel délai de livraison ?
Les délais de livraison dépendent du pays et du code postal de destination. Ils seront affichés lors du paiement et concernent uniquement les articles en stock.
Pour les produits indiqués Disponible en précommande, le traitement peut prendre de 5 à 15 jours. En cas de retard, notre service client vous tiendra informé rapidement.
Quelles sont les conditions de garantie ?
Tous les produits bénéficient d’une garantie légale de 24 mois. Certaines marques offrent une garantie étendue.
Cliquez ici pour plus d’informations.
Puis-je retourner un produit ?
Vous avez le droit de retourner un produit dans un délai de 14 jours après la livraison, conformément à notre Politique de Retour. Les frais de retour sont à la charge du client. L'article doit être retourné intact, dans son emballage d'origine. Merci de nous contacter avant tout retour.
Sei un'azienda? Compila il modulo per la fatturazione
Clicca sul pulsante qui sotto per inserire i tuoi dati aziendali:
Vai al moduloIndustries:
- Amateur radio
- Commercial radio
- Telecom
- Field Communication
- Marine
Use cases:
- Checking and adjusting antennas
- Measurement of various parameters of cables
feedlines, filters, and other - 1/4-λ, 1/2-λ coaxial stubs setup
- Finding cable fault
Main features:
- 1000 MHz measures
- Factory calibration
- Сolor TFT display
- Pocket-size
- Splash and dustproof case
- User-friendly interface
- 16-hour runtime one charge
- Operation temperature from -20° to 55°C
Frequency range: 0.1 – 1000 MHz
Frequency input step: 1 kHz
Measurements for 12.5, 25, 28, 37, 50, 75, 100, 150, 200, 300, 450 and 600Ω systems
SWR measurement range: from 1 to 100 in digital mode, from 1 to 10 in graph modes
Range R and X: 0… 2000, -2000… 2000

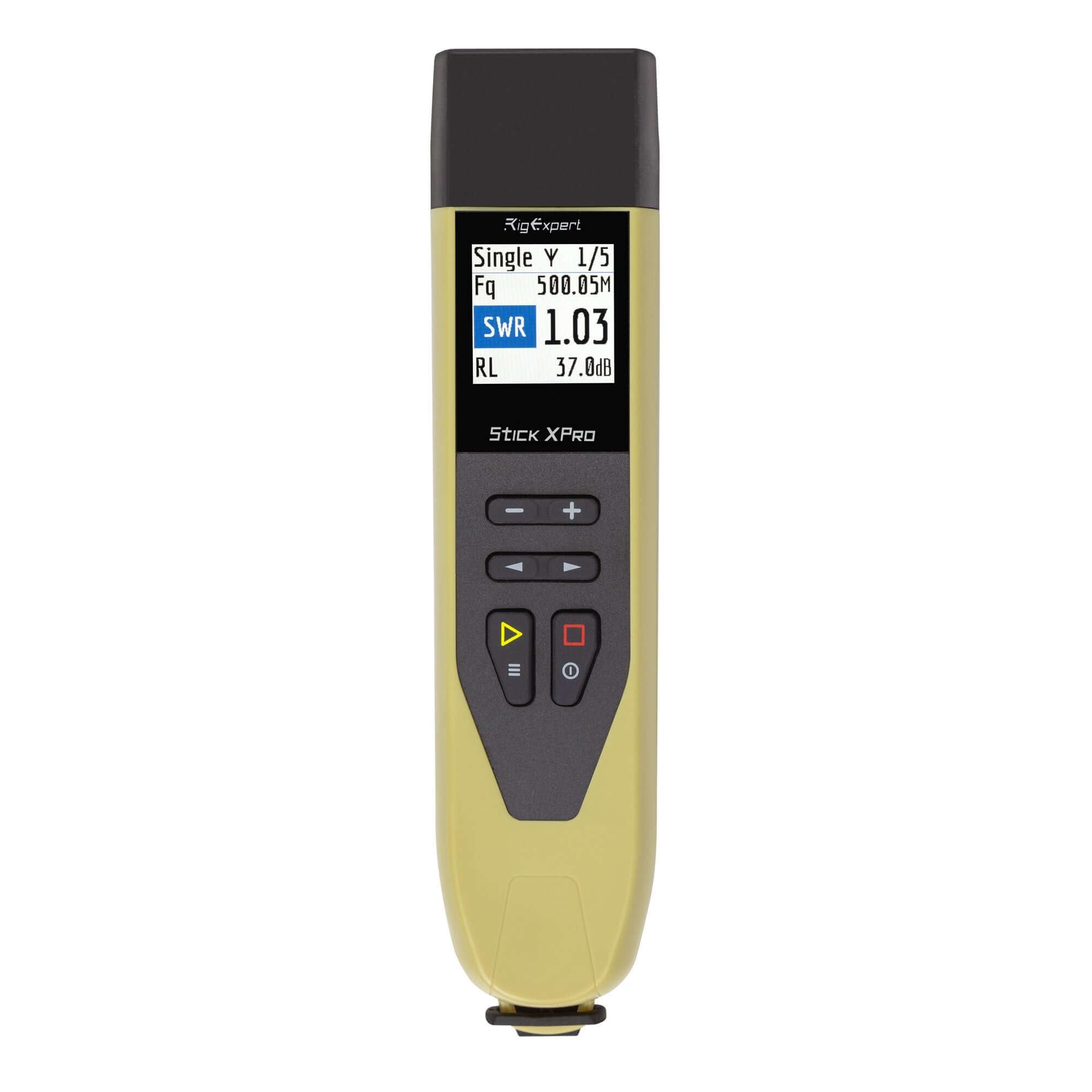

Operating modes: Multé (a quick check of multiband antennas), HAM (a quick check of single band antenna), Single (measure SWR, |Z|, R, X, C, L, RL, Mag&Phase), TDR (distance to fault), SWR chart, Return Loss chart, RX Chart, OSL calibration mode, Сable tools (StubTuner, Cable Length, Impedance, Loss measurements)
HF output: Connector type: N-type. Output signal shape: square, from 0.1 to 1000 MHz. Output power: -10 dBm (at a load of 50 Ohms).

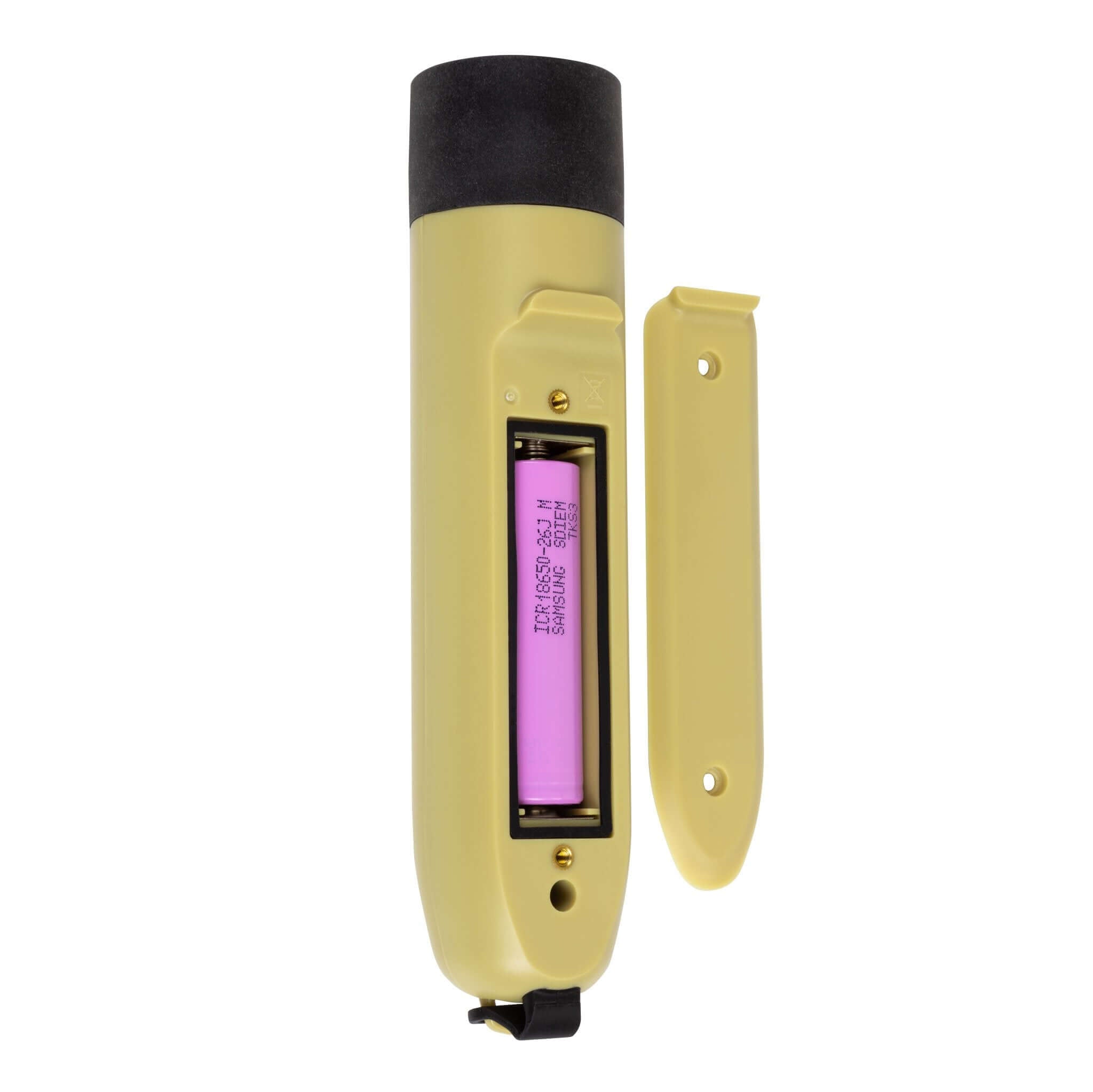

Power: One Lithium-ion 18650 (included). Сharge time: 3 hours when using a charger. When the analyzer is connected to a PC or DC adapter with a USB connector, it receives power from these sources
Interface: TFT display, 220х220 pixels resolution. 2 × 3 keys on the waterproof keyboard. English (by default) and Japan menu and help screens. USB connection to a personal computer
Bluetooth: ver. 4.2 BLE Single-mode, Class B, via USB 2.0 Type-C
Dimensions: 185 x 40 x 33 mm (7.3 x 1.6 x 1.3 inches)
Operating temperature: -20°- 55°C (-4°-131°F)
Weight: 185 grams (6.5 Oz) with battery

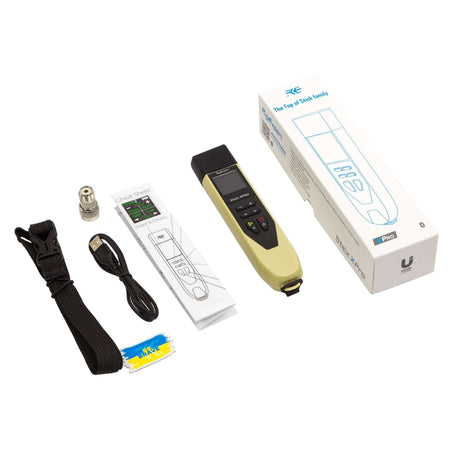

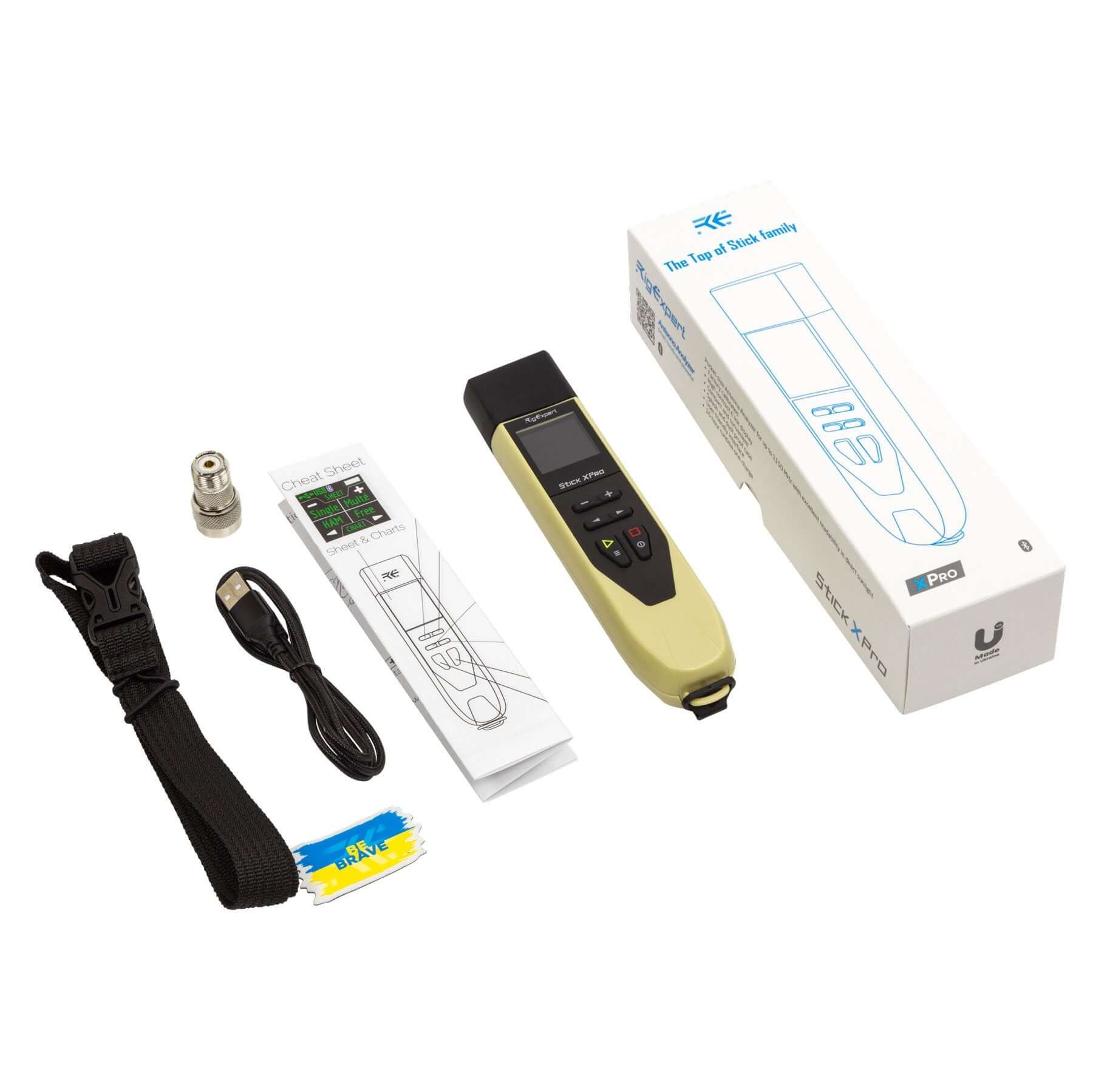

In the box:
- RigExpert Stick XPro antenna analyzer
(with a Li-ion battery type 18650) - Quick-start guide
- Neck strap
- USB cable
- N-type to UHF adapter
