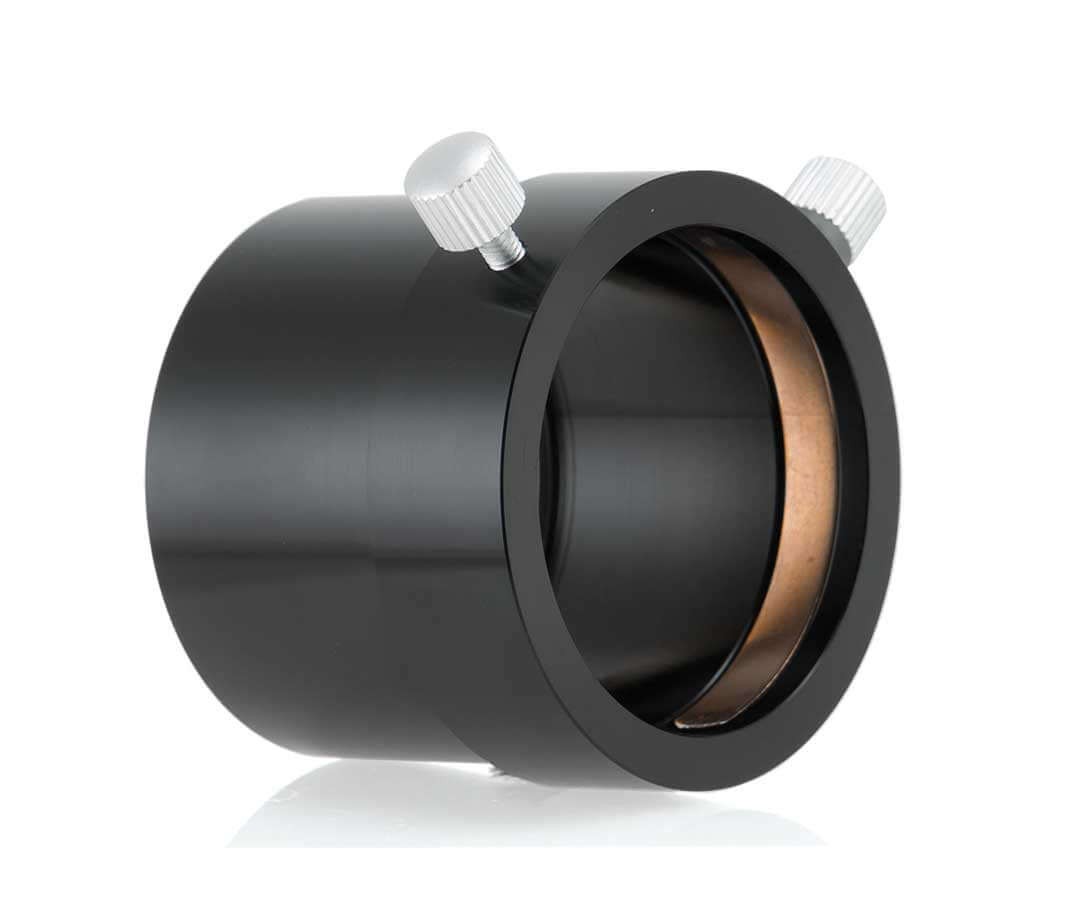

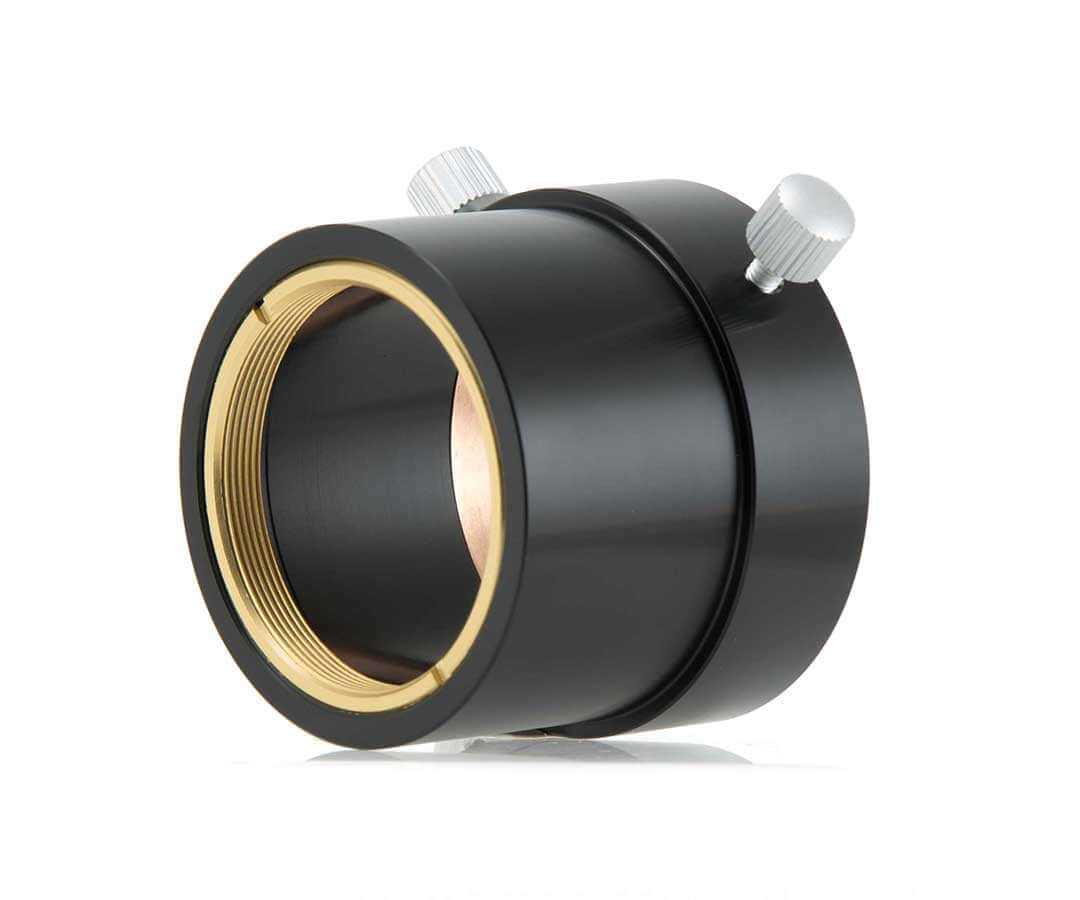

TS-Optics Adattatore 2" per Maksutvov Skywatcher e Orion
Questo adattatore consente di utilizzare accessori da 2" con i telescopi Skymax Maksutov-Cassegrain da 102 mm a 180 mm di apertura.
- Adatto anche per Orion Maksutov-Cassegrain da 100 mm e oltre
- Filettatura laterale del telescopio: filettatura Skywatcher Mak da 45 mm
- Lato oculare: presa da 2".
- Lunghezza: 55 mm
- Con anello di serraggio in ottone
Skywatcher and Orion offer good and affordable Maksutov systems. Due to the long f-number, eyepieces with long focal length can be used. But eyepieces with a larger field stop diameter are naturally 2" eyepieces.
With the standard 1.25" adapter, you give away valuable field of view. This problem is solved with the TSSKM-2.
Please note:
This adapter fits only to Maksutovs originally equipped with an 1.25" adaptation. Maks with a 2" adapter unfortunately have a different thread size on the OTA´s back side. The 90 mm Mak can also not be used with this adapter as it would come too close to the focus knob.
Experts comment by Teleskop-Service:
The compatible Maksutov-Cassegrains have a baffle tube diameter of approx. 30 mm. In theory, one might doubt that a 2" eyepiece makes sense here. But we can say: it does!
If using eyepieces with larger field stops, the image does not become dark at once but slowly from the perimeter to the edge. The human brain can compensate brightness differences up to approx. 15%.
As long as an illumination of 85% is acceptable, the usable field stop diameter rises to 40 mm and you significantly gain field of view.
| Telescope side connection: | 45 mm Skywatcher thread |
| Eyepiece side connection: | 2" receptacle |
| Mechanical length: | 55 mm |
