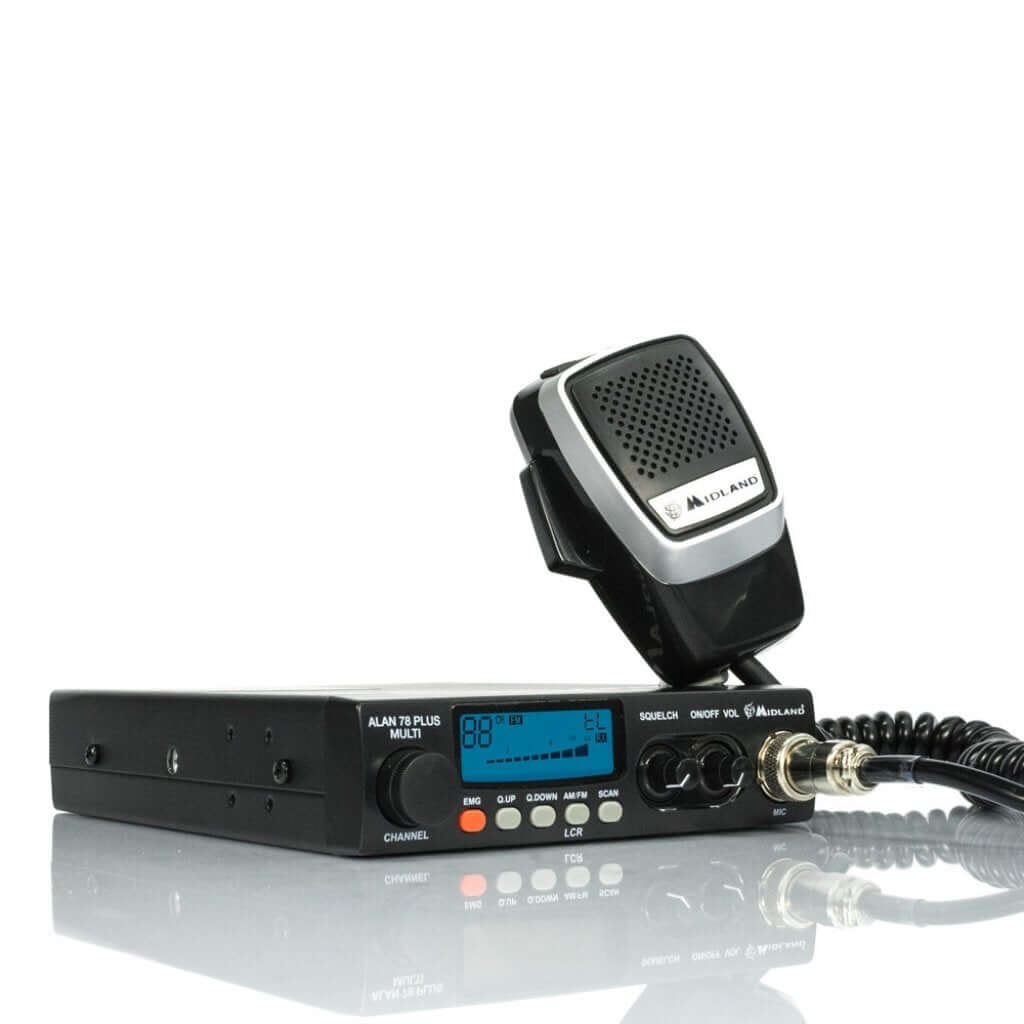

Midland Alan 78 Plus Multi B
Regular price
€119,00 EUR
incl. VAT
Find out shipping times and costs at checkout!
- External speaker jack
- External s-meter jack
- SCAN
- Multi standard radio
- Power: 1W/4W depending on the country
- Channels: it depends on the country (see page 32)
- Blue backlit multi-function display
- “Precision series” microphone with UP/DOWN/LOCK keys
- Squelch
- External speaker jack
- External s-meter jack
- SCAN
- Mike connector: 6 pin
1 radio, microphone, mounting bracket, fixing screws.
| CB type | Multistandard mobile |
|
| |
| Channels-Band | see table on page 32 |
| Frequency range | 26.565-27.99125 MHz |
| Power voltage | 12,6 Vcc ± 10% |
| Dimensions (WxHxD)/Weight | 180 x 35 x 140 mm/0,850 Kg |
| Mic jack | 6 pin |
| Receiver |
|
| Sensitivity (20dB SINAD) | 0.5 μV |
| Audio output power | > 2W @ 8 Ohm |
| Audio distorsion | < 8% @ 1KHz |
| Transmitter |
|
| Output power | 4 W |
| Modulation | AM: 85% a 95% FM: 1.8 KHz +/- 0.2 KHz |
| Max absorbed current | 1100 mA |
