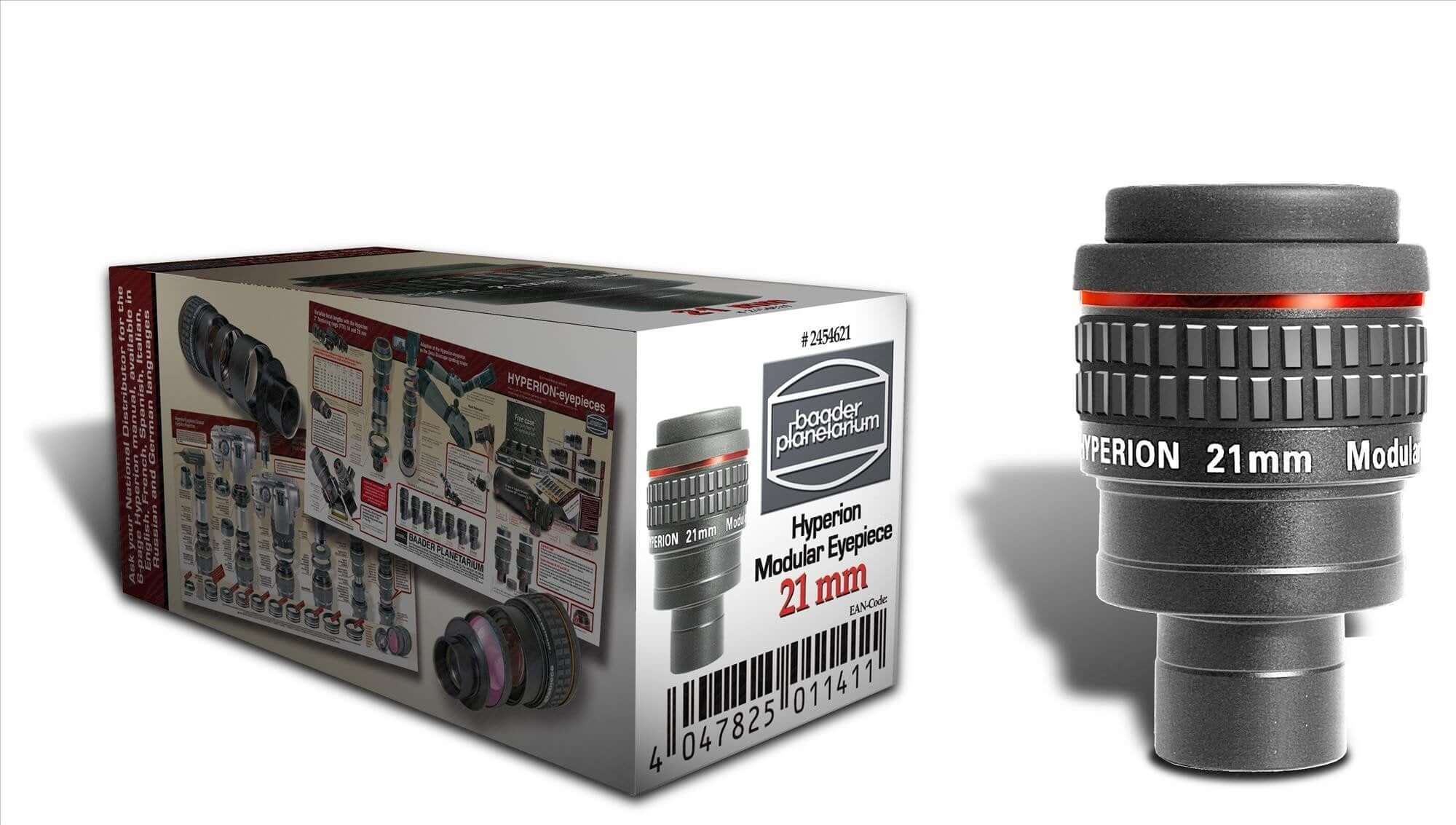

Baader 21mm Hyperion Eyepiece
When does the delivery take place?
Delivery times vary depending on the country and destination postal code. They will be shown at checkout and apply only to products currently in stock.
For products marked as Not in stock, processing may take between 5 and 15 days. If delays occur, our customer service will contact you with timely updates.
What are the warranty terms?
All our products come with a 24-month legal warranty. Some brands provide extended warranty. Contact us for more info.
Click here for more information.
Can I return a product?
You have the right to return a product within 14 days from delivery, as stated in our Refund Policy. Return shipping costs are the responsibility of the customer. Items must be returned in their original condition and packaging. Please contact us before returning.
Sei un'azienda? Compila il modulo per la fatturazione
Clicca sul pulsante qui sotto per inserire i tuoi dati aziendali:
Vai al modulo- Fixed focal length of 21mm, 68° field of view – ease of view even at high magnifications!
- High quality Phantom Group-Coating in Zeiss class for complete freedom from reflections with maximum contrast
- 1¼" and 2" barrels included, thus variable focal lengths
- Includes many threads for camera and accessory adaptation, afocal and classical eyepiece projection is possible
Most telescopes are supplied with one or two simple eyepieces in the set, which do not exploit the performance of the optics. Moderate contrast and sharpness and small field of vision quickly spoil the fun of the sky observation. With Hyperion eyepieces you get everything out of your telescope!
They are suitable for photo! Keep your Astro eyepiece impressions forever by connecting the cameras and camcorders at the Hyperion!
You can distinguish between the series with "Prime lenses" f = 5 mm, 8 mm, 10 mm, 13 mm, 17 mm, 21 mm, 24 mm, the two great eyepieces aspheric 31 mm and 36 mm, as well as the Hyperion zoom eyepiece with infinitely variable focal length of 8 mm to 24 mm.
| WEIGHT (KG) | 0.456 |
|---|---|
| EYEPIECE SERIES | Hyperion |
| SPECIFICATIONS | |
| FOCAL LENGTH | 21 mm |
| APPARENT FIELD OF VIEW | 68° |
| EYE RELIEF (MM) | 20 mm |
| AR-COATING | Phantom Coating® Group |
| PARFOCAL EYEPIECES | Yes |
| BARREL SIZE (IN) | 1¼", 2" |
| OPTICAL DESIGN | Modular |
| SPECIALITY | Eyepiece projection: afocal, Eyepiece projection: classical |
| EYEPIECE DESIGN | |
| FIELD STOP DIAMETER | 24,9 mm |
| FIELD STOP DISPLACEMENT TO REFERENCE PLANE | -22,3 mm |
| NUMBER OF LENS ELEMENTS | 8 |
| NUMBER OF GROUPS | 5 |
| SLIP PROTECT SAFETY | Classic Undercut |
| EYEPIECE BODY ABOVE REFERENCE PLANE (MM) | 56 mm |
| LENGTH OF 1¼" BARREL (MM) | 27 mm |
| LENGTH OF 2" BARREL (MM) | 49,3 mm |
| OUTER DIAMETER | 58 mm |
| CONNECTIONS | |
| OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) | Thread, M43 |
| INNER CONNECTION (LENS SIDED) | Thread, M28,5, M48 |
| OUTER CONNECTION (LENS SIDED) | Barrel, 1¼", 2" (50,8mm) |
| CAMERA THREAD | M43, SP54 |
| THREADED FOR FILTERS | Yes |
| INCLUDED ITEMS | |
| DUSTCAPS | 1¼" dustcap (31,8mm), 2" dustcap (45mm), 2" dustcap (46.5mm - fits over eyecup) |
| EYECUPS | folding eyecup (M43) |
| INCLUDED ACCESSORIES | Soft-leather bag |
