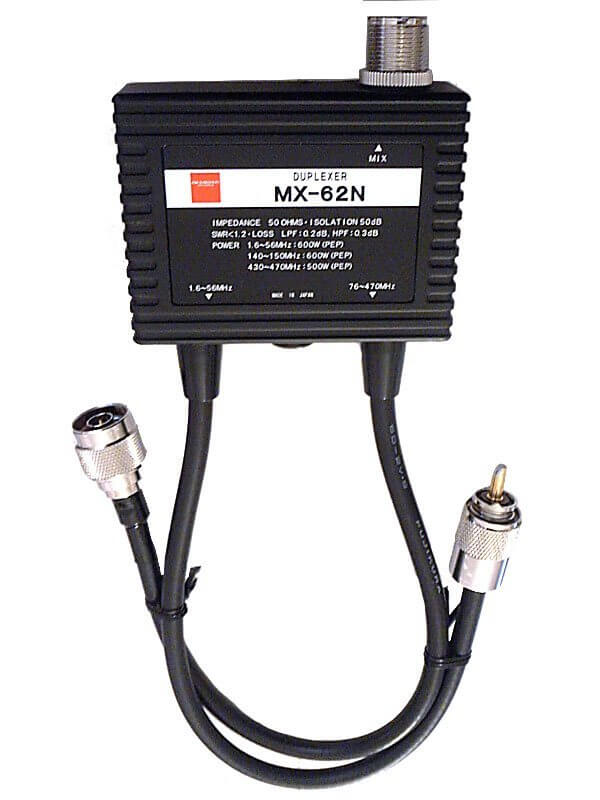

Diamond MX-62N Duplexer 1.6 to 56MHz/76 to 470MHz
When does the delivery take place?
Delivery times vary depending on the country and destination postal code. They will be shown at checkout and apply only to products currently in stock.
For products marked as Not in stock, processing may take between 5 and 15 days. If delays occur, our customer service will contact you with timely updates.
What are the warranty terms?
All our products come with a 24-month legal warranty. Some brands provide extended warranty. Contact us for more info.
Click here for more information.
Can I return a product?
You have the right to return a product within 14 days from delivery, as stated in our Refund Policy. Return shipping costs are the responsibility of the customer. Items must be returned in their original condition and packaging. Please contact us before returning.
Sei un'azienda? Compila il modulo per la fatturazione
Clicca sul pulsante qui sotto per inserire i tuoi dati aziendali:
Vai al moduloDimensions: 86Wx25Hx64Dmm
Weight: 360g
Pass Band Frequency: LPF: 1.6-56MHz / HPF: 76-470MHz(76 to 120MHz receiving only)
Power: 1.6-56MHz 600W (PEP)
140-150MHz 600W(PEP)
430-470MHz 600W (PEP)
Insertion loss: 1.6-56 MHz Less than 0.2dB
140-150MHz Less than 0.3dB
Impedance: 50ohms / VSWR:Less than 1.2
Isolation: More than 50dB
Connector: Mix: SO-239
1.6-56MHz: PL259 /76-470MHz: N-P
Coaxial cable: 5D-2V 35cm
