Home » Diamond SX-1100 Quad Band SWR Power Meter
Diamond

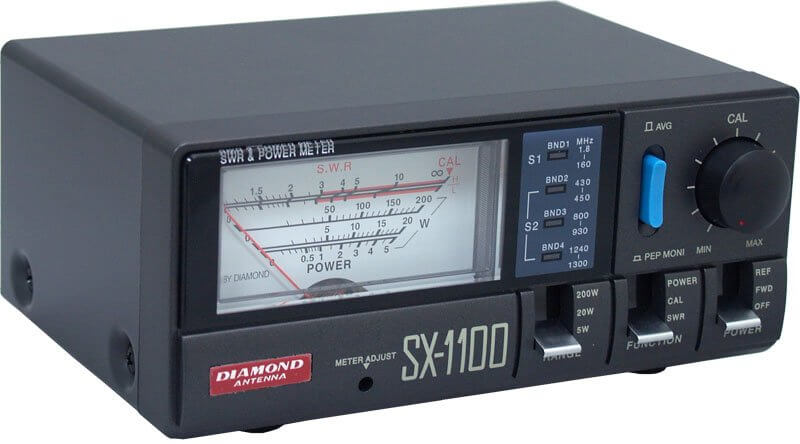

Diamond SX-1100 Quad Band SWR Power Meter

Not in stock: will be backordered
Product code: DMSX-1100 EAN: 4936312071505
€209,00 EUR incl. VAT
Find out shipping times and costs at checkout!
The SX1100 measures forward and reflected power and VSWR. Compact size makes meter useful for testing both base and mobile installations. Two directional couplers with switch and LED indicators for in-line connection of two transceivers.

Special Features:
• Illuminated meter
• Switchable r.m.s. or peak power
• Measures forward, reflected & VSWR power
• 6"W x 2"H x 4"D, 2 lbs.

Specifications:

Frequency MHz: 1.8-160, 430-450
800-930, 1240-1300
Connectors: HF-VHF: SO-239
UHF: Type-N

Remarks: 12VDC @ 50mA is required for illuminated display.
