Vai al moduloDiamond SX-200 HF/VHF SWR/Power Meter

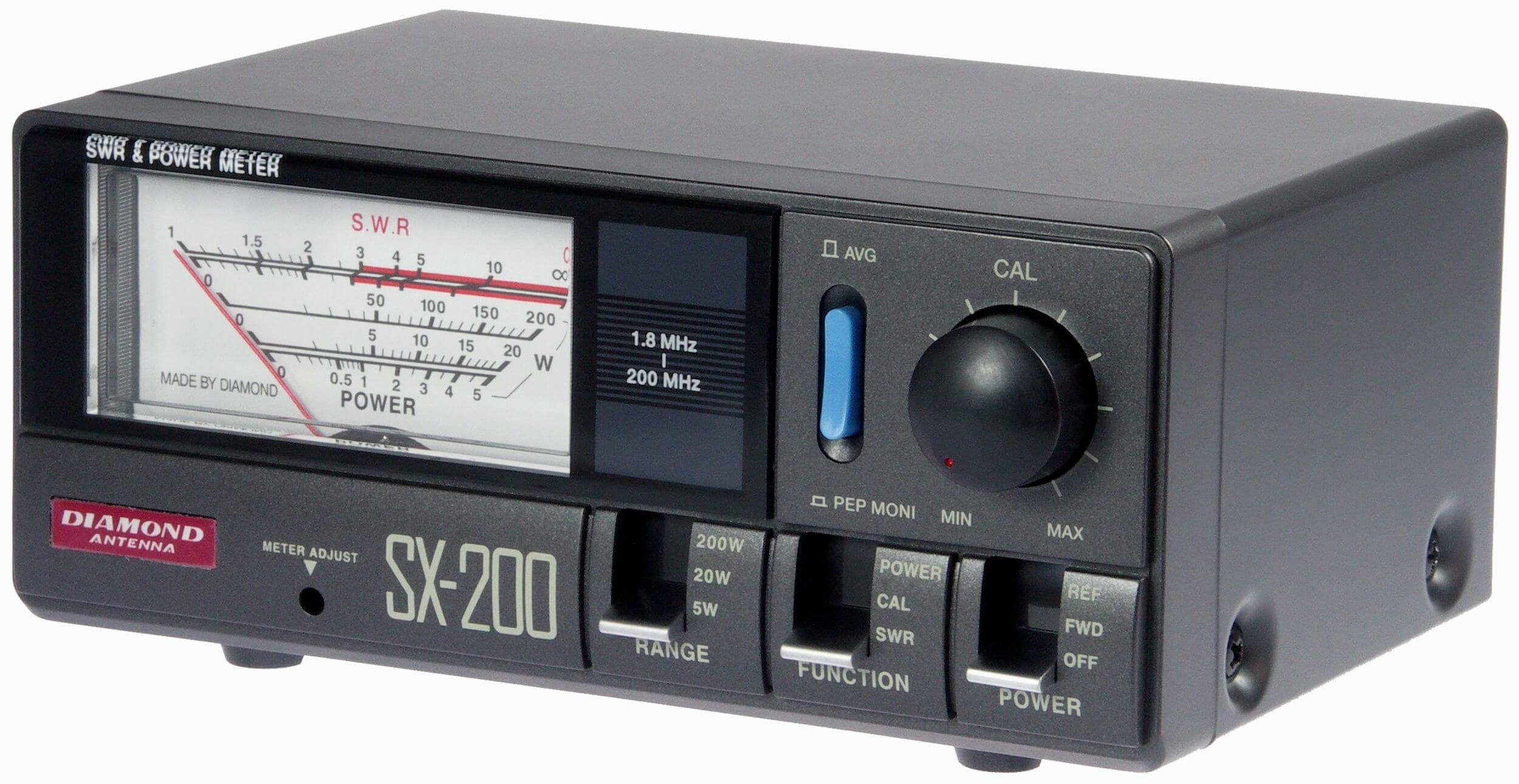

The Diamond SX-200 is a high-quality analog SWR and power meter designed for accurate measurement of forward power, reflected power, and SWR in the HF and VHF bands. It offers superior precision compared to standard CB meters and is ideal for amateur radio operators looking for reliability and stable performance.
An optional 12V DC power supply can be used for meter illumination, while all measuring functions remain fully operational even without external power. The large analog meter ensures clear readings and easy monitoring during operation.
Main Features
- Selectable power measurement: AVG (Average Power) or PEP (Peak Envelope Power)
- Selectable display modes: Forward Power, Reflected Power or SWR
- Three selectable power ranges
- Rugged metal chassis for durability
Diamond SX Series – Available Models
- SX-27P: 144/430 MHz up to 60 W
- SX-100: HF up to 3 kW
- SX-200: HF & 2 m up to 200 W
- SX-400: 140–525 MHz up to 200 W
- SX-600: HF & V/UHF with dual sensor (1.8–160 MHz & 140–525 MHz)
- SX-600N: Version with N connectors
- SX-1100: HF to UHF with dual sensor (1.8–160 MHz & 430–1300 MHz)
Technical Specifications – Diamond SX-200
| Model | SX-200 |
| Brand | Diamond |
| Impedance | 50 Ω |
| Frequency Range | 1.8 – 200 MHz |
| Maximum Power | 200 W |
| Measurement Modes | AVG / PEP |
| Connectors | PL (SO-239) |
| Power Supply | 12V DC (illumination only, optional) |
The Diamond SX-200 HF/VHF SWR/Power Meter is a reliable measuring instrument for performance verification and antenna tuning in amateur radio stations.
