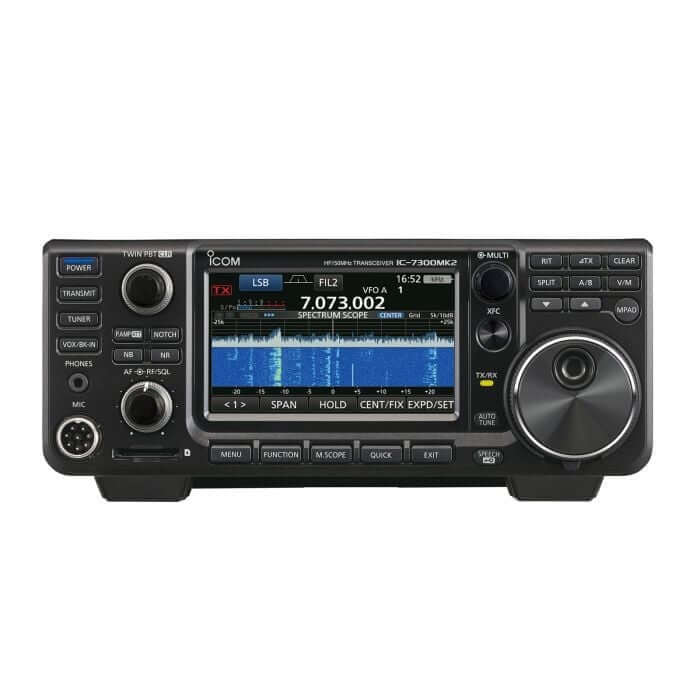

Vai al moduloIcom IC-7300MK2 – SDR HF/50/70 MHz Transceiver with Touchscreen and RF Sampling Technology
The Icom IC-7300MK2 is the enhanced successor of the renowned IC-7300, bringing new features and superior performance for demanding amateur radio operators. It is a compact and powerful All Mode SDR transceiver with direct RF sampling, designed to deliver top-class receive and transmit quality on HF, 50 MHz, and 70 MHz bands.
Thanks to direct RF sampling, signals are immediately digitized and processed by FPGA, ensuring outstanding signal purity and crystal-clear audio. The large 4.3” TFT color touchscreen provides intuitive operation with real-time spectrum scope, waterfall display, and FFT-based Audio Scope.
Performance and new features of the IC-7300MK2
- ✅ Improved RMDR: approx. 105 dB typical at 2 kHz offset, reducing blocking from adjacent signals.
- ✅ Optimized phase noise: approx. -139 dBc/Hz at 1 kHz for clearer reception.
- ✅ Lower power consumption: only 0.7 A in standby (compared to 0.9 A in the previous model) with less heat generation.
- ✅ Integrated CW decoder: instant Morse code decoding without a PC.
- ✅ HDMI™ port for external display connection.
- ✅ USB Type-C with dual virtual COM ports, ideal for simultaneous FT8 operation and recording.
- ✅ Ethernet LAN port for RS-BA1 remote control (no PC server required, like with the IC-7610).
- ✅ Separate SMA connectors for RX antennas, filters, and preamplifiers.
- ✅ Support for the newly allocated 5 MHz band in Europe.
The integrated speaker, mounted in an isolated enclosure, delivers clean and distortion-free audio. An automatic antenna tuner with memory, 101 programmable memories, and multi-mode operation (CW, SSB, AM, FM, RTTY) make the IC-7300MK2 a highly versatile choice – perfect for DX hunting and contesting.
Main technical specifications
| TX range | 1.8–29.7 MHz / 50–52 MHz / 70–70.5 MHz (EU) |
| RX range | 0.03–74.8 MHz (guaranteed 0.5–30 MHz) / 50–54 MHz / 70–70.5 MHz |
| Operating modes | SSB, CW, RTTY, AM, FM |
| Memory channels | 101 (99 regular + 2 scan) |
| Antenna connector | SO-239 (50Ω) |
| Power supply | 13.8 V DC ±15% |
| Current drain TX | 21 A (at 100 W) |
| Current drain RX | 0.7 A standby, 1.25 A max audio |
| Output power | 2–100 W (HF/50 MHz), 2–50 W (70 MHz) |
| AM power | 1–25 W (HF/50 MHz), 1–12.5 W (70 MHz) |
| Audio output | >2.5 W (1 kHz, 10% THD on 8Ω) |
| Dimensions | 240 × 94 × 238 mm |
| Weight | approx. 4.2 kg |
| Display | 4.3” TFT color touchscreen |
Included accessories
- Hand microphone HM-219
- DC power cable
- User manual
With its advanced functions, the new Icom IC-7300MK2 sets a new benchmark in the class of compact HF All Mode transceivers, making it the ideal choice for operators who demand reliability, innovation, and top performance in their radio equipment.
